Why Does Sennheiser Use Such A Weird Audio Jack Size?

Most consumer electronics come with a 3.5mm audio jack (also known as the ⅛ jack) as standard, meaning you can buy a universal headphone audio cable from pretty much any retailer and use it across your range of compatible devices, including headphones, laptops, and tablets.

While newer Sennheiser headphones, like the HD 6XX series feature this standard 3.5mm audio jack (often with a 6.35mm adapter included), some of the brand's headphone models, particularly older ones, have a different design. Rather than featuring a standard 3.5mm audio jack that most audio cables can fit into, select Sennheiser headphone models — primarily earlier models in the HD 5XX series — feature a smaller 2.5mm audio jack with a unique twist-lock bayonet-style connection mechanism.

This twist-lock mechanism is proprietary to Sennheiser, designed to protect the higher fidelity but more delicate 2.5mm jack from damage. However, it's not a universal connector, meaning that (without some DIY) only compatible 2.5mm audio cables that complement this mechanism can be used with these headphone models; these cables cannot be used with non-Sennheiser headphones without an adapter. Below, we break down more on the weird audio jack sizes Sennheiser uses and the benefits and drawbacks of this twist-lock mechanism.

Sennheiser headphones commonly use traditional 3.5mm audio jacks, though some models — including the HD 450BT and those in the HD5XX series — use the smaller 2.5mm audio jack size. There are some key differences between 2.5mm and 3.5mm headphone jacks that go beyond size.

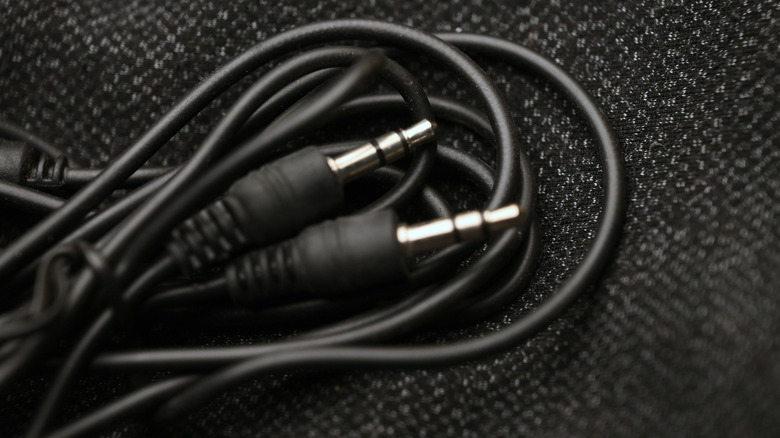

3.5mm audio jacks are most commonly found on consumer electronics, such as laptops, tablets, and smartphones (though smartphone makers have stopped including headphone jacks), making it a more universal connection. This size is popular due to its balance of size, durability, affordability, as well as its ability to support analog audio and mic-equipped headphones or headsets. Sennheiser often includes a 3.5mm to 6.35mm screw-on adapter for its 3.5mm headphones that allows them to be plugged into professional audio equipment that often utilizes the larger 6.35mm (¼-inch) audio jack due to its sturdy connection and durability.

The 2.5mm audio jack, on the other hand, is less commonly used, and is often found on older devices like cell phones and radios — and some Sennheiser headphones. That's because, while it is a more compact, high-fidelity connector, and can increase power output, it's not very durable. Fortunately, Sennheiser has a mechanism that increases the sturdiness of its 2.5mm headphone audio jack connections.

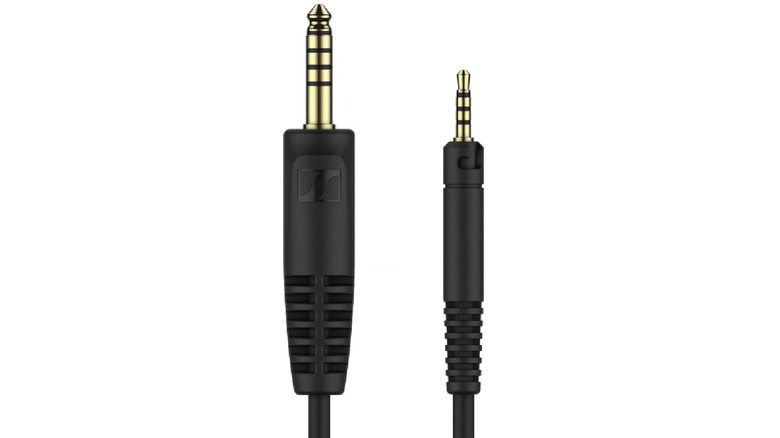

Sennheiser's twist-lock mechanism is commonly found on older, 2.5mm audio jack headphones in the HD 5XX range, like the HD 559, but can also be found on newer models in the series, like the HD 550.

Compatible audio cables for these models feature a groove in the plastic below the plug (on the end that connects into the headphones) that looks a bit like a wave — this is the "key." The inside of the headphone's audio jack has a complementary design into which this design can neatly fit — like a lock. When you plug a twist-lock cable into a compatible pair of headphones, you then need to twist the end to lock the cable into place.

According to Sennheiser, this mechanism "keeps your cable securely in place to avoid inadvertent separation" from your headphones. This means you shouldn't have to deal with those annoying instances where you accidentally snag your cable during a particularly catchy track.

However, there are also drawbacks to this connection method. The main issue is that its unique design causes confusion and frustration among some users; you cannot simply use any old 2.5mm audio cable with headphones featuring this twist-lock design, nor can you reuse Sennheiser's included cable for other devices without a compatible adapter, typically available from third-party retailers and aftermarket sites.

Official new cables for the HD 5XX range can be bought from Sennheiser directly for about $13.00, with third-party alternatives also available from audio retailers. However, Sennheiser warns that third-party cables may not fit properly.
